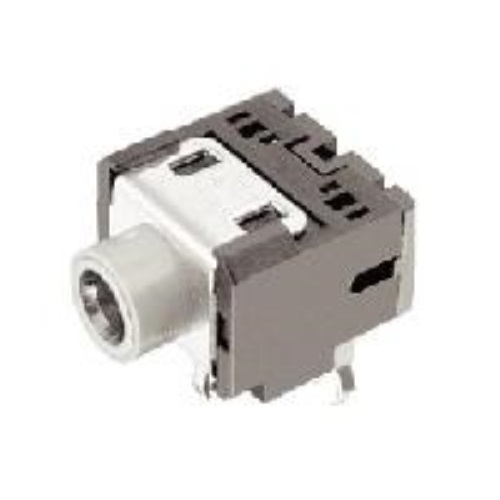

TPJ-3A160
SIZE:13x12 H=5mm
SPECIFICATION
Rating: DC30V 0.5A
Contact resistance:≤50 mΩ
After life test: ≤100 mΩ
Insulation resistance:≥100MΩ(DC500V)
After life test: ≥50 mΩ
Withstand voltage: 500VAC
Insertion and Extraction force: 3-30N
Life test: 5,000 cycles
Operation temperature range:-20℃ to +70℃
Preservative temperature range: -40℃ to +85℃
