RJ 45+TSFM

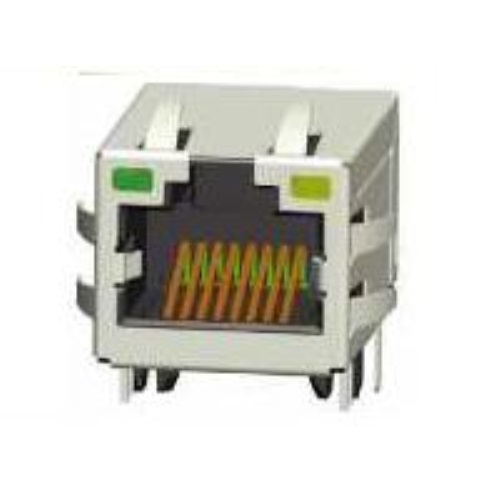

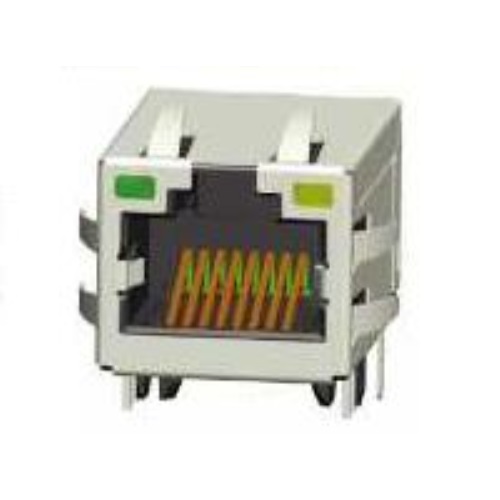

GC08S

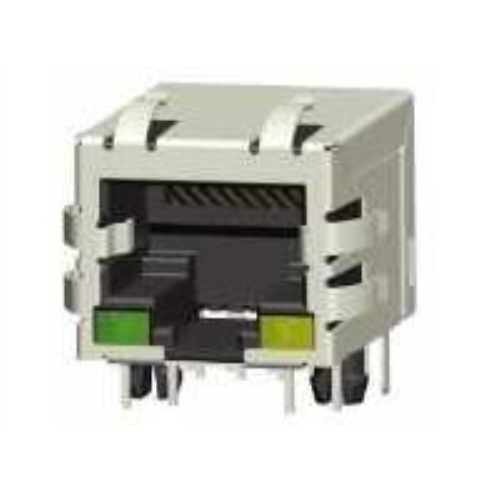

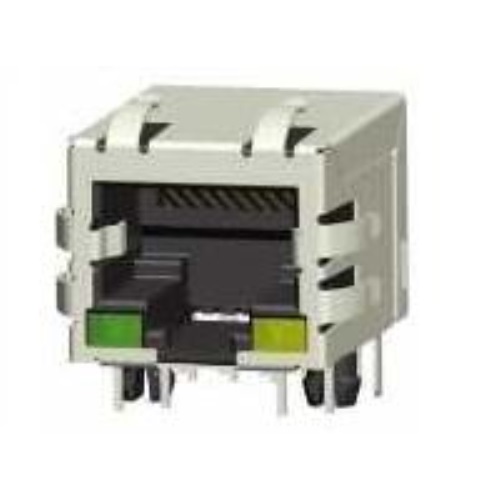

RJ45 JACK TSFM 10/100/1000M

ELECTRICAL CHARACTERISTICS:

Test Notes:(25±5℃)

1.TR:(100KHz,0.1V);

 Pins:(P1,P2):(J1,J2)=1:1±3%;(P3,P4):(J3,J6)=1:1±3%

 Pins:(P7,P8):(J4,J5)= 1:1±3%;(P9,P10):(J7,J8)=1:1±3%

2.LX:(100KHz,100mV,8mA,DC Biss)

 Pins: (P1,P2), (P3,P4), (P7,P8), (P9,P10)=350uH Minimum

3.DCR:Plns: (J1,J2), (J3,J6), (J4,J5), (J7,J8)=1.2ΩMaximum

4.HIPOT:Pins (P1,P2) to (J1,J2), P3,P4) to (J3,J6)=1500VAC For 60s or 2250VDC 60S

  Pins (P7,P8) to (J4,J5), (P9,P10) to (J7,J8)=1500VAC For 60s or 2250VDC 60S

5.INSERTION LOSS:-0.8dB Maximum at 0.3MHz to 100MHz;

 -1.2 dB Maximum at 100MHz to 120MHz;

6.RETURN LOSS:-18dB Minimum at 0.5MHz to 40MHz

-12+20Log(f/80MHz)dB Minimum at 0.1 MHz to 100MHz

7.CROSS TALK:-33+20Log(f/100MHz)dB Minimum at 0.1MHZ to 100MHz

8.COMMON TO DIFFERENTIAL MODEREJECTION:

 -35dB Minimum at 300MHz to 100MHz

9.COMMON TO COMMON DODE REJECTION:

 -30dB Minimum at 300KHz to 100MHz
