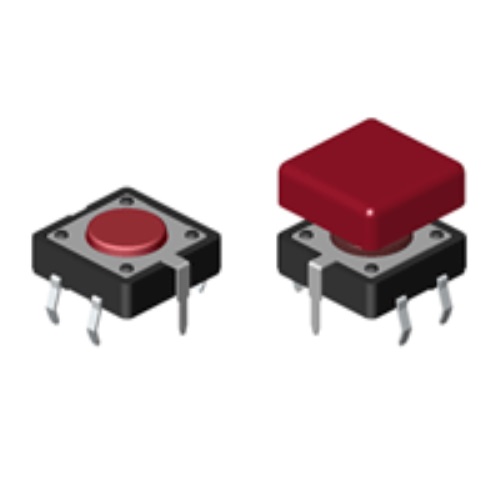

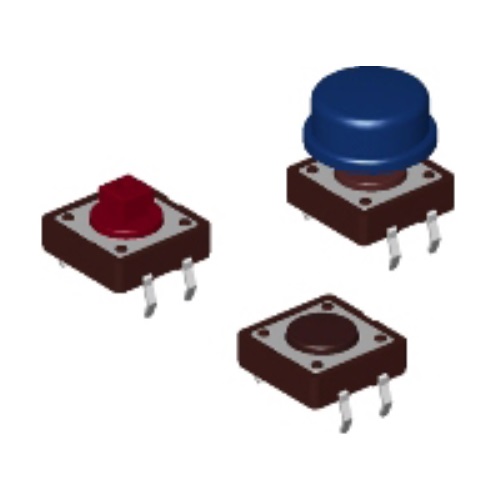

輕觸開關
DTS-2
Size:12x12mm
Through Hole Type

SPECIFICATIONS

Operation Force:520±130gf Yellow(Y)

320±80gf Salmon(S)
                             260±50gf Red(R)
                             160±50gf Brown(N)
                             100±50gf Black(K)

Stop Strength: Max 3kgf vertical static load continuously
                      for 15 seconds

Stroke : (12x12) 0.35±0.1mm
              (6x6) 0.25+0.2/-0.1mm

Operation Temperature Range : -25℃ to +70℃

Storage Temperature Range : -30℃ to +80℃

ELECTRICAL (6X6)

Electrical Life300,000 cycles for 320gf,520gf
                        500,000 cycles for 260gf
                       1,000,000 cycles for 100gf,160gf

Rating50mA , 12 VDC

Contact Resistance100m? max

Insulation Resistance:100M? min , 500 VDC

Dielectric Strength250 VAC / minute

Contact Arrangement1 pole 1 throw


MATERIAL

COVER : Stainless steel

CONTACT DISC:Phosphor bronze with silver cladding(Standard)
                           Stainless Steel(V-Option)

TERMINALBrass with silver plated

BASE:UL94V-0 Nylon High-Temp. Thermoplastic

STEMUL94V-0 Nylon High-Temp. Thermoplastic

ColorBlack(100gf) , Brown(160gf) , Red(260gf)
           Salmon(320gf) , Yellow(520gf)

(Phosphor bronze)

ELECTRICAL (12X12)

Electrical Life: 100,000 cycles for 320gf
                         100,000 cycles for 260gf
                         200,000 cycles for 160gf
(Stainless Steel)

Electrical Life: 500,000 cycles for 260gf
                       1,000,000 cycles for 160gf
