輕觸開關

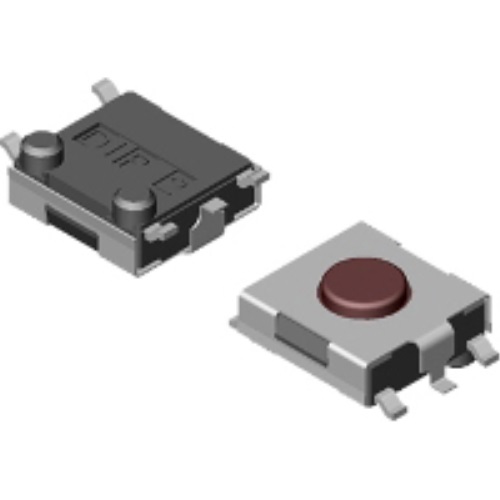

DTS(G)ZM(P)-6
Size:6.2x6.2mm
Thinner Type With Ground Terminal

SPECIFICATION

MECHANICAL

Operation Force: 100±50gf Black(B)

                            160±50gf Brown(N)

                            260±50gf Red(R)

Stroke: 0.25+0.2mm/-0.1mm

Operation Temperature: -25℃ to +70℃

Storage Temperature: -30℃ to +80℃

ELECTRICAL

Electrical Life: 100,000 cycles for 260gf

                        200,000 cycles for 100gf,160gf

Rating:  50mA, 12VDC

Contact Resistance: 100mΩ max.

Insulation Resistance: 100MΩ min.at 500VDC

Dielectric Strength: 250VAC/1 minute

Contact Arrangement: 1 pole 1 throw



MATERIAL

COVER: Stainless steel (DTSYH-6,DTSZM-6)

             Nickel silver (DTSGZM-6)

BASE: UL94V-0 Nylon High-Temp.Thermoplastic

Color: Black

CONTACT DISC: Stainless steel with silver cadding

TERMINAL: Brass with silver Plated

STEM: UL94V-0 Nylon High-Temp.Thermoplastic

Color: Black(100gf),Brown(160gf),Red(260gf)

下載 Download
DTS(G)ZM(P)-6.pdf
