SPECIFICATION

MECHANICAL

Operation Force: 100±50gf Black(B)

                            160±50gf Brown(N)

                            260±50gf Red(R)

                            320±80gf White(S)

                            520±130gf Yellow(Y)

Stroke: 0.25+0.2mm/-0.1mm

Operation Temperature: -25℃ to +70℃

Storage Temperature: -30℃ to +80℃

ELECTRICAL

Electrical Life: 300,000 cycles for 320gf,520gf

                        200,000 cycles for 100gf,160gf

Rating:  50mA, 12VDC

Contact Resistance: 100mΩmax.

Insulation Resistance: 100MΩ min.at 500VDC

Dielectric Strength: 250VAC/1 minute

Contact Arrangement: 1 pole 1 throw

MATERIAL

COVER: Stainless steel (DTSl.F-6)

              Nickel silver (DTSGl.F-6)

BASE: UL94V-0 Nylon High-Temp.Thermoplastic

Color: Black

CONTACT DISC: Stainless steel

TERMINAL: Brass with silver Plated

STEM: UL94V-0 Nylon High-Temp.Thermoplastic

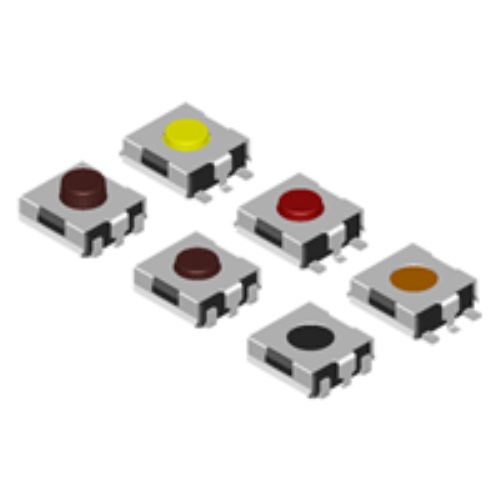

Color: Black(100gf),Brown(160gf),Red(260gf),White(320gf),Yellow(520gf)

Silicon Rubber Color: Brown (200gf)
