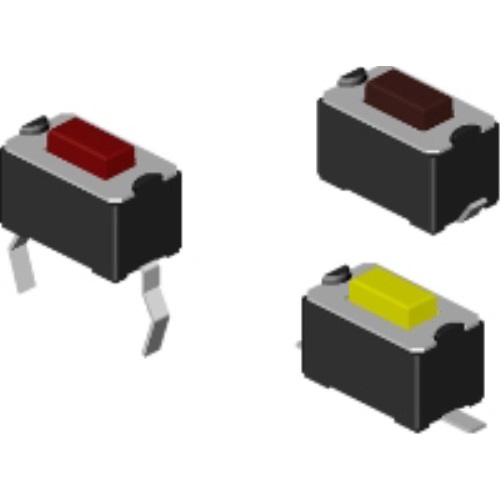

輕觸開關
DTS(M)(L)-3
Size:3.5x6 mm
Tactile Siwtches

SPECIFICATION

MECHANICAL

Operation Force: 520±130gf Yellow(Y)

                           320±80gf Salmon(S)

                           260±50gf Red(R)

                          160±50gf Brown(N)

Stroke: 0.25+0.2mm/-0.1mm

Operation Temperature: -25℃ to +70℃

Storage Temperature: -30℃ to +80℃

ELECTRICAL

Electrical Life: 50,000 cycles for 160g,320g

                      30,000 cycles for 260g,520g

Rating:  50mA, 12VDC

Contact Resistance: 100m? max.

Insulation Resistance: 100M? min.500VDC

Dielectric Strength: 250VAC/1 minute

Contact Arrangement: 1 pole 1 throw



MATERIAL

COVER: Stainless steel

BASE: UL94V-0 Nylon High-Temp.Thermoplastic

STEM: UL94V-0 Nylon High-Temp.Thermoplastic

Color: Brown,(160gf),Red(260gf)

Samlmon(320gf),Yellow(520gf)

CONTACT DISC: Stainless with silver cadding

TERMINAL: Brass with silver Plated

下載 Download
DTS(M)(L)-3.pdf
