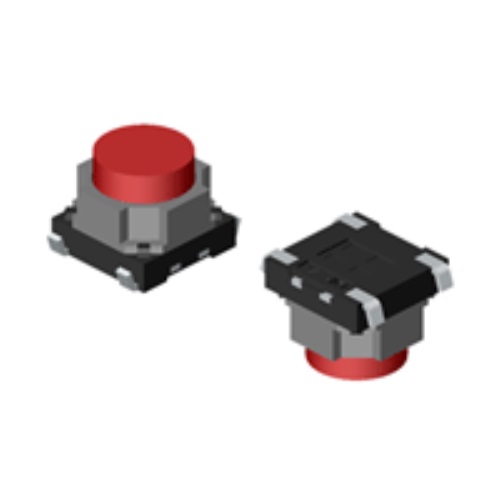

SPECIFICATION

MECHANICAL

Mechanical Life: 30,000 operations.

Operation Force: 200±50gf RED(R)

Operation Tempature: -40℃ to +85℃

Storage Temperature: -40℃ to +85℃

Stroke:1.30+0.10/-0.30mm

ELECTRICAL

Electrical Life:30,000 cycles.

Rating: 50 mA 12 V DC.

Contact Resistance: 100mΩmax. at 500VDC

Insulation Resistance:100MΩ min. at 500VDC

Dielectric Strength: 300V AC/1 minute.

Contact Arrangement: 1pole 1throw

MATERIAL

COVER：NYLON UL 94V-0 High-Temp Thermoplastic

Color: Black.

Silicone Dome：Silicone rubber with metal contact With Gold Plating

STEM：NYLON UL 94V-0 High-Temp Thermoplastic

Color: Red.

BASE：NYLON UL 94V-0 High-Temp Thermoplastic

Color: Black.

TERMINAL：Brass , With Silver Plating
